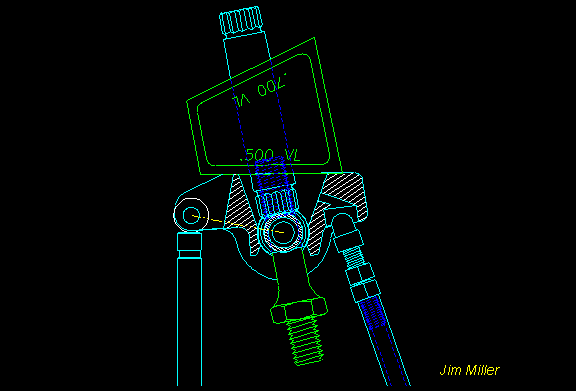

This shows the e MEI G-TooL™
after the .500" VL setting (STEP TWO) has been completed properly. It is a good
idea to snug the Adjuster down upon the rocker's trunnion after getting the
proper length push-rod for this second step, finger tight only, just to remove
any small free play that may still exist. Once done, as with the previous first
step, REMOVE the G-TooL, the Adjuster, and the push-rod to carefully avoid
changing your setting. Then measure its overall length and record this too. A
special (Patent Pending) push-rod length checker is available from MEI's Tool
department, as well as 12" calipers.
