M P G

MID-LIFT®

TECHNICAL



OE SERIES

ORIGINAL EQUIPMENT REPLACEMENT

 DISCONTINUED

We've been overwhelmed through 2009 and 2010 with requests from all over the world for this super popular product. We've considered bringing them back since 2006, but the problem has been that like any stamping process, it takes large commitment per order to justify the tooling costs. New dealers are still being added to reduce this investment. If you are a shop that is interested in being included with any first production, please be sure to write us at MillerRockers@aol.com and get listed.

4130 FORMED CHROMOLY STEEL - SHOE TIP - BALL FULCRUM

The  original PVS "OE Series" "Original Equipment" 4130 chromemoly steel, "shoe tip" rocker arms for Chevy 350 (and some 302 Ford) engines, follow two years of development, in optimizing the MID-LIFT® technology to a shoe rocker arm. For classes requiring a "stock type" rocker arm, the 1018 versions made in Elgin, Illinois can't come close; including their Nitride coated versions sold by our friends in Daytona. As usual, these rockers use MEI's Patent Pending geometry face for easy, correct "Installed Geometry™".

CHEVY 350 PART NUMBERS

"OE 35 Series"

Pt. # OE3515A

(1.50:1 Ratio,   7/16" Stud #4 Fulcrum)



Pt. # OE3515B

(1.50:1 Ratio,   3/8" Stud #3 Fulcrum)



Pt. # OE3516A

(1.60:1 Ratio,   7/16" Stud #4 Fulcrum)



Pt. # OE3516B

(1.60:1 Ratio,   3/8" Stud #3 Fulcrum)

OE SERIES INSTRUCTIONS

NET: $320.00 (Set of 16) Not CHEAP. Just THE BEST!

This is the rocker arm that revolutionized the "shoe" tip, Original Equipment "type" steel rocker arm market. The only companies making anything comparable, are using warmed over stock, 1018 or 1012 mild steel versions, with band-aid heat treat techniques, that offer minimal surface life enhancements, when the real cause is the alloy itself.

PVS uses 4130 chromemoly steel we import from Germany, ship to our stamping facility, then inspect and assemble in-house. Our "USA" PVS powder metal ball fulcrums are made by the same vendor as Ford's 4.6 Liter rocker arms, which are truly state-of-the-art in oil impregnated and retained precision, that are designed to a radius we developed that will NOT fit any other rocker arm.

ORDER the OPTIONAL 12-Point Adjusters for ULTIMATE lash control for only $36.00.

Revised Heat Treat 4340 Steel, estimated availability: mid- 2011

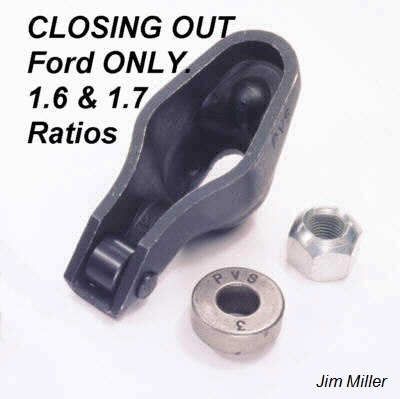

(For Roller Tip See PF SERIES)

PF Series

MILLER MID-LIFT™
The Standard By Which All Is Measured!™
